TP-LINK

TP-LINK T1500-28PCT(TL-SL2428P) - TP-LINK smart Switch 24 ports

Chargement...Chargement...
-32%

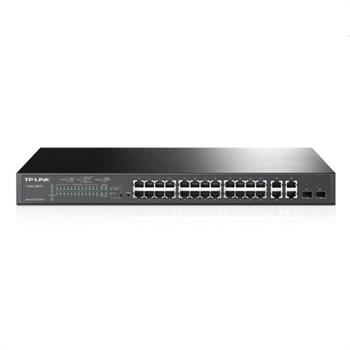

TP-LINK smart Switch 24 ports T1500-28PCT(TL-SL2428P)

Prix Normal : 4 800,00 Dh HT

Votre Prix :3 250,00 Dh HT

3 900,00 Dh TTC

Economie : 1 550,00 Dh - 32%

Upports 24 ports 802.3at / af-PoE + compatibles avec une alimentation totale de 180W La stratégie de sécurité intégrée, y compris le VLAN 802.1Q, la sécurité des ports et le contrôle Storm, protègent l'investissement dans la zone LAN L2 / L3 / L4 QoS et IGMP snooping optimisent les applications voix et vidéo

Disponibilité : Nous consulter sur mv.ma
Evaluation :
  • TP-LINK smart Switch 24 ports T1500-28PCT(TL-SL2428P)
Description:

Supports 24 802.3at/af-compliant PoE+ ports with a total power supply of 180W
Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
WEB/CLI managed modes, SNMP, RMON bring abundant management features.


SPÉCIFICATIONS MATÉRIELLES


Standards et Protocoles IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q,
IEEE 802.1p
Interface 24 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Combo Gigabit SFP Slots
Interface réseau 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
Nombre de ventilateurs 2
Alimentation 100~240VAC, 50/60Hz
Consommation Maximum(PoE on): 222.15W (220V/50Hz)
Ports PoE+ Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 180W
Dimensions (LxPxH) 17.3*8.7*1.7 in.(440*220*44 mm)


PERFORMANCES


Bande passante/ backplane 12.8Gbps
Taux de transfert de paquets 9.5Mpps
Tableau d'adresses MAC 8k
Trame Jumbo 9216 Bytes


CARACTÉRISTIQUES LOGICIELLES


Qualité de Service QoS Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Voice VLAN
Fonctions N2 IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
LLDP, LLDP-MED
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Liste de contrôle d'accès L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Sécurité SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
Administration Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS


AUTRES


Certification CE, FCC, RoHS
Contenu de l'emballage T1500-28PCT
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Système requis Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environnement Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

PortsCommutateur - 24 ports
Switch Vitesse de Ports 24 x 10/100
PoENon
GéréNon
SFP2 x SFP
Moyenne des revuesAverage Rating 3
