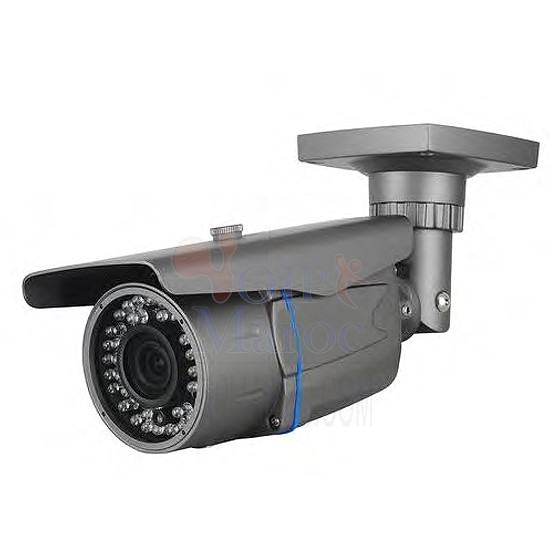

Model

SE-NI103N

IR Led

￠5X42PCS

 IR Range

30-40M

Lens

support M12/M14/ CS mount lens,  Lens8/6/4/12mm

Working Temperature

-20~+50℃

Size

139mmx78mmx70mm

Compression

H.264

Max.image Resolution

1280×720

System Architecture

Embedded RTOS design, dual-core 32-bit DSP(TI Davinci DM365),pure hardware compression,WDT,128MFLASH,128MDDR2

Image Sensor

1 megapixel, 1/4’’CMOS image sensor;;switching optical filters, day/night covert, infrared sensitive, photo resistor signal linkage

Min. Illumination

 color 1.0Lux@F1.2,B&W 0.1 Lux@F1.2

Video Process

H.264 codec, dual stream, AVI format record;0.1M-6Mbps bit rate (adjustable)

Frame Rate

1 megapixel 25fps(full real time), support 1-25 fps(adjustable)

Video Output

Main Stream:1280×720(video resolution); Sub Stream:640×360,480×270,320×180

Audio Interface

N/A

Audio Process

N/A

Network Interface

1*RJ45 Ethernet interface,10/100Mself-adaptation;

Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Mobile phone

Iphone,  Android

USB Interface

N/A

TF Interface

N/A

Auto Iris Lens Type

N/A

Photo Resistor

1*photo resistor interface, input signal and image by photo resistor, IR-CUT,IR LED linkage;

LED

1*IR LED control interface, control enable and disable IR LED by algorithm;

PTZ Interface

N/A

Alarm Interface

N/A

Analog Output

1 channel analog video output, support CVBS standard ,PAL/NTSC;

Optional

W(WiFi),-HW(high-power WiFi),-E(POE),-C(EVDO),-G(WCDMA),-J(Mobile Phone Surveillance);

Business Function

configure by WEB, OSD(on screen display),real-time video transmission, motion detection and IO alarm linkage front-end storage, playback front-end storage, download front-end storage, center prompt and picture pop-up after IO alarm; support remote surveillance client software(UC2)、VM6000 platform; support perfect SDK for secondary development

Others

DC12V input, power consumption: 3 watts
