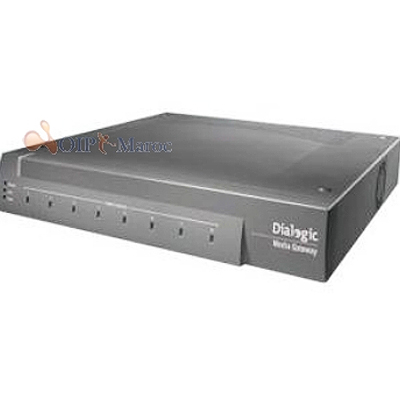

Dialogic 884-211 - Passerelle DMG1008DNIW PBX IP Media
Chargement... FICHE TECHNIQUE
General | |
|
Type |
VoIP gateway |
|
Width |
9.5 in |
|
Depth |
10 in |
|
Height |
2.1 in |
|
Weight |
2.4 lbs |
Networking | |
|
Form Factor |
External |
|
Ports Qty |
8 |
|
Connectivity Technology |
Wired |
|
Framing Format |
G.711, G.723.1 |
|
Data Link Protocol |
Ethernet, Fast Ethernet |
|
Remote Management Protocol |
SNMP 1, Telnet, HTTP |
|
Communication Mode |
Half-duplex, full-duplex |
|
Status Indicators |
Port status, collision status, link OK |
|
Features |
BOOTP support, manageable, Trivial File Transfer Protocol (TFTP) support |
IP Telephony | |
|
VoIP Protocols |
SIP |
|
Voice Codecs |
G.723.1, G.729ab, G.711u, G.711a, T.38 |
|
Telephony Interfaces |
8 line (FXO) |
Expansion / Connectivity | |
|
Interfaces |
8 x phone line - RJ-45 |
Miscellaneous | |
|
MTBF |
5 years |
|
Compliant Standards |
EN 60950, EN55024, UL 60950 Third Edition, EN55022 Class B, ICES-003 Class B, IC CS-03, FCC Part 15 B, FCC Part 68, RoHS, CSA C22.2 No. 60950 Third Edition |
Power | |
|
Power Device |
Power adapter - externe |
|
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
Environmental Parameters | |
|
Min Operating Temperature |
32 °F |
|
Max Operating Temperature |
104 °F |
