Fiche Technique

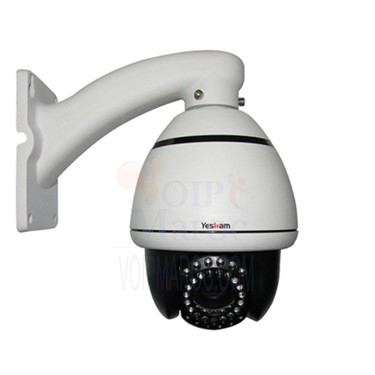

Model No .	YK-NH4RS-130
Signal model	PAL/NTSC
Image sensor	1/2.8" SONY CMOS
Effective pixel	1280*720
Horizontal resolution	720P
Minimum illumination	Color to B/W,Color:0.1Lux,B/W:0.01Lux
S/N ratio	>60dB(Enhanced)
Backlight compensation	On/Off
White balance	Auto
Electronic shutter	PAL:1/25~1/100000s  NTSC:1/30~1/100000s
Focus length	3.9-39mm
Optical focus	10X
Focus	Auto / Manual / Push Auto , the use of high-performanceDSP to realize complete digit and ultra-high speed focus function
Presets	256
IR distance	35m
Patrol track	4groups, each can record 200 actions
Cruise track	Total 30 presets can join cruise, can setting the presets' residence time
Other scan	Support Horizontal scan, deuce area scan, scan random
Rotation range	Horizontal 360°unlimted rotation, Vertical 90°,auto reversal
Rotation speed	Horizontal & Vertical Min 0.01°,Max 200°/S
Video compression	H.264 Main Profile encoding ;  MJPEG / JPEG Baseline encoding
Audio compression	G.711, G.726, support 32K stereo
Primary stream	1280 * 720 , 25fps
Secondary stream	640 * 480 , 25fps
Video bit rate	32Kbps-16Mbps continuously adjustable,  support CBR / VBR
Network protocol	TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、 DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
ONVIF support	Support
Power supply	DC12V/3A
Work environment	-20°C~+50°C (select temperature control accessories), <95%RH
