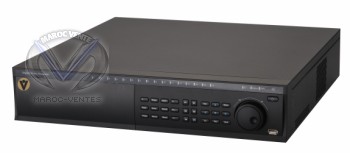

Standalone DVR H.264 16 channel KD-D0814H

Standalone DVR H.264 compression algorithm ideal for standalone DVR, Realtime live display up to 16 cameras, 400/480 fps recording for 2CIF&CIF, 200/240 fps recording for 4CIF, Pentaplex function: live, recording, playback, backup & remote access.

Ce produit n'est plus proposé à la vente

Disponibilité : Obsolète (Fin de vie)

Evaluation :

Evaluer ce produit.

Description
Avis des clients

FICHE TECHNIQUE

System
Main Processor	High performance embedded microprocessor
Operating System	Embedded LINUX
System Resources	Pentaplex function: live, recording, playback, backup & remote access
User Interface	GUI, on-screen menu tips.
Control Device	Front panel, USB mouse, keyboard, IR remote control, network keyboard,.
nput Method	Numeral/Character/Denotation
System Status	HDD status, data stream statistics, log record, bios version, on-line user and etc.
Video
Video Input	4/8/16-channel, BNC, 1.0Vp-p, 75O,
Video Output	2 channel TV output BNC, 1.0Vp- p, 75? 1 VGA output, matrix output
Video Standards	PAL(625Line,50f/s),NTSC(525Line,60f/s)
Video Compression	H.264
Video Resolution	Format NTSC PAL D1(4CIF) 704 X 480 704 X 576 2CIF 704 X 240 704 X 288 CIF 352 X 240 352 X 288 QCIF 176 X 120 176 X144
Video Recording	D1/2CIF/CIF/QCIF: PAL 1f/s-25f/s NTSC 1f/s-30f/s;
Video Display Split	Full and multiple screen display, 1 / 4 / 8 / 9 / 16
Tour Display	Support
Image Quality	1~6 level (Level 6 is the best)
Privacy Masking	Self-defined four-sided zone for privacy masking for each camera
Camera Lock	Camera locked for users
Camera Adjustment	Adjust color according to different time period
Video Information	Camera title, time, video loss, camera lock, motion detection, recording
TV Output Adjustment	Adjust TV output color & display zone
Audio
Audio Input	4/8/16 channel, RCA, 200-2800mV, 30KO
Bidirectional Talk Input	1 channel, BNC, 200-2800mV, 30KO
Audio Output	1-channel, BNC, 200-3000mv, 5KO
Audio Compression	ADPCM
Video Detection& Alarm
Motion Detection	Zones: 192 (16*12) detection zones Sensitivity: 1~6 (level 6 is highest) Trigger recording, PTZ movement, tour, alarm.
Video Loss	Trigger recording, PTZ movement, tour, alarm.
Camera blank	Trigger recording, PTZ movement, tour, alarm
Camera Masking	Trigger recording, PTZ movement, tour, alarm.
Alarm Input	16-channel, programmable, ground, manual open/close, Trigger recording, PTZ movement, tour, alarm,
Relay Output	6 channel, 30VDC, 1A, NO/NC, form-C
Hard Disk
Hard Disk	8 SATA ports, 8 HDDs supported
Space Occupation	Audio :14.4MB/H Video :56~400MB/H
HDD Management	Hard disk hibernation technology, HDD faulty alarm & Raid (Redundancy)
Record, Playback & Backup
Recording Mode	Manual, continuous, video detection (including motion detection, camera masking, video loss), Alarm
Recording Priority	Manual >Alarm >Video Detection >Continuous.
Recording Interval	1 to 120 minutes (default: 60 minutes)
Overwrite Mode	Support
Raid Function	Support
Search Mode	Time/Date, Alarm, Motion Detection & exact search (accurate to second)
Playback	2channel play back simultaneously, Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection.
Digital Zoom	Selected zone can zoom into full screen during playback
Backup Mode	Flash stick/ USB HDD/ USB CD-RW/DVD-RW/ built-in SATA Burner/ network download
Network
Interface	RJ-45 Port (10/100M)
Network Functions	TCP/IP, DHCP, DDNS, PPPOE, E-mail, FTP
Remote operation	Monitor, PTZ control, playback, system setting, file download, log information
Auxiliary Interface
USB Interface	USB2.0, 2 ports, 1 for mouse control, 1 for backup
RS232	keyboard, PC communication
RS485	PTZ control
Environmental
Power Supply	220V 50Hz / 110V 60Hz
Working Temperature	-10°C-+55°C
Power Consumption	25W/30W/40W
Working Humidity	10%~90%
Atmosphere Pressure	86kpa~106kpa
Dimension	2U, 440mmx460mmx89mm (WDH)
Weight	7.0KG
Mounting	Desktop or rack
